Smart sensor

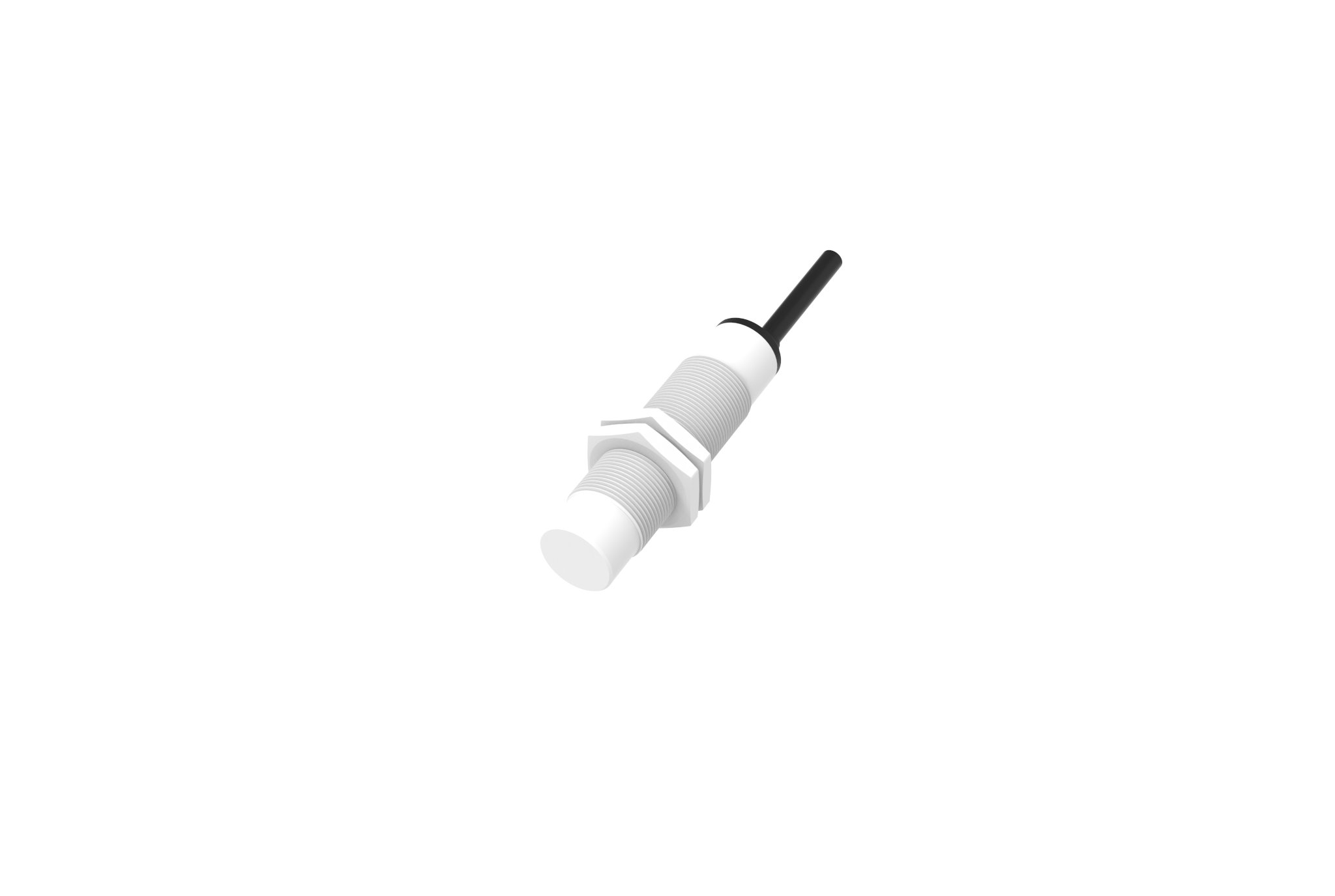

ER18XTCN05DPO
Power supply voltage: 10...30 VDC
Output type: PNP
Output method: NO
Installation method: non-buried (contact type)
Detection distance: 5 mm
Current consumption: ≤15mA
| Power supply voltage | 10...30VDC |
| Output Type | PNP |
| Output method | NO |
| Installation method | Non-buried (contact type) |
| Detection distance | 5mm |
| Consumption of current | ≤15mA |
| Protection circuit | Short circuit protection, overload protection, reverse polarity protection |
| Indicator light | yellow LED |
| Vibration resistance | Complex amplitude 1.5 mm 10…50Hz（X，Y，Z 2 hours each) |
| High pressure resistance | 1000V/AC 50/60Hz 60s |
| Protection level | IP67 |
| Housing material | PTEE |
| Connection method | 2m PVC lead |
| Appearance specifications | M18*80mm |
| Standard target | Inner diameter ＞20mm Metal ring |
| Switch point offset | ≤±20% |
| Hysteresis range | 3…20% |
| Repeat error | ≤5% |
| Load current | ≤200mA |
| Residual voltage | ≤2.5V |
| Ambient humidity | 35...95%RH |
| Insulation impedance | ≥50M Oh （500 VDC） |
| Sensitivity | Potentiometer adjustable |
